Description

Engineered for Ergonomics. Defined by Integration.

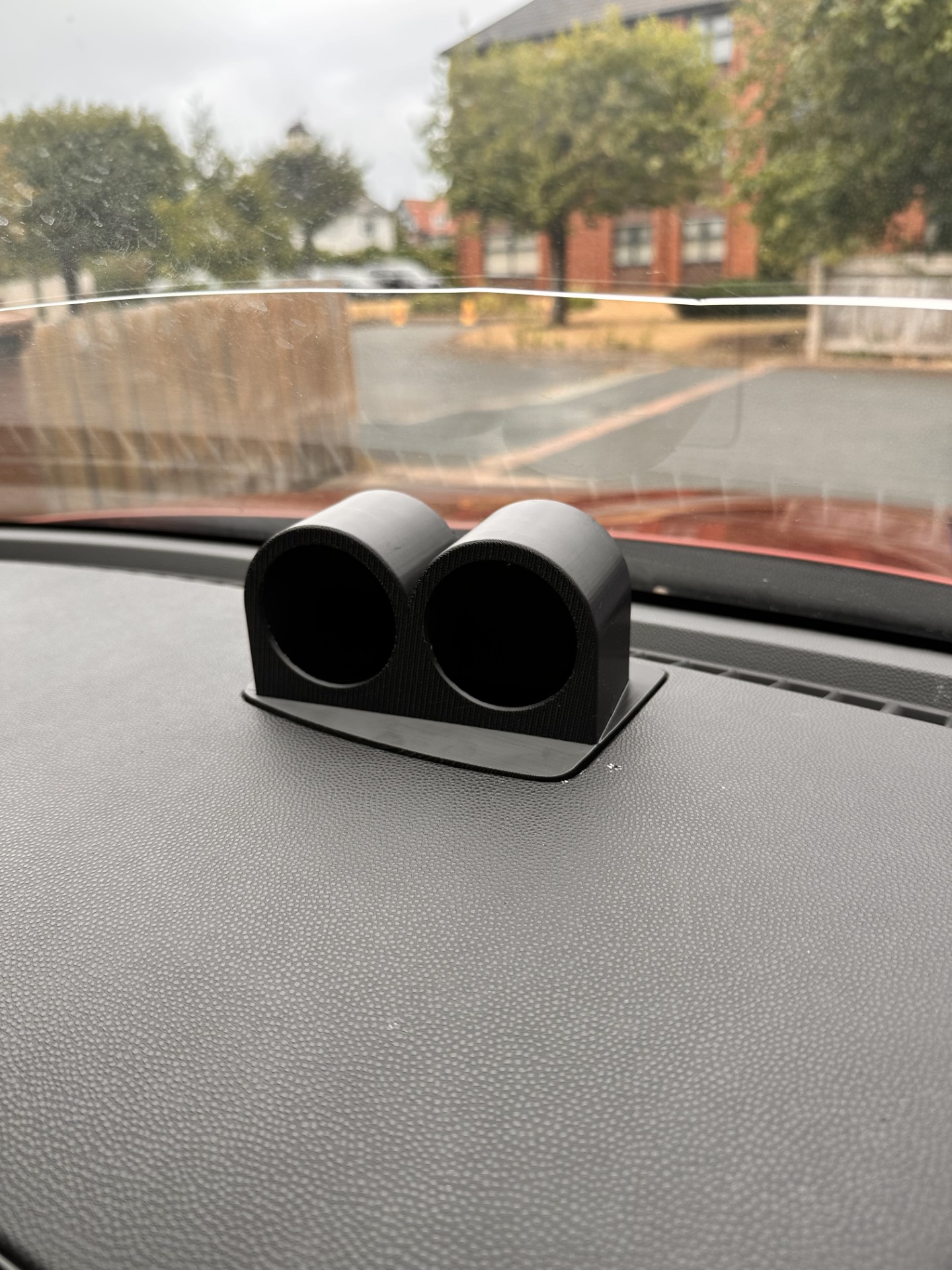

Our Custom Dual 52mm Center Speaker Gauge Pod is the ultimate solution for NC MX-5 owners looking to run multiple aftermarket electronics while maintaining a factory-finish look. Standard market offerings often compromise on depth, fitment, and installation access. We engineered this system from the ground up utilizing the OEM center speaker footprint, delivering a high-quality, driver-focused mounting solution that integrates seamlessly into your dashboard. Available in both Left-Hand Drive (LHD) and Right-Hand Drive (RHD) configurations, each version is a precisely mirrored copy designed to maintain the exact same optimized layout and driver-centric focus regardless of your steering placement.

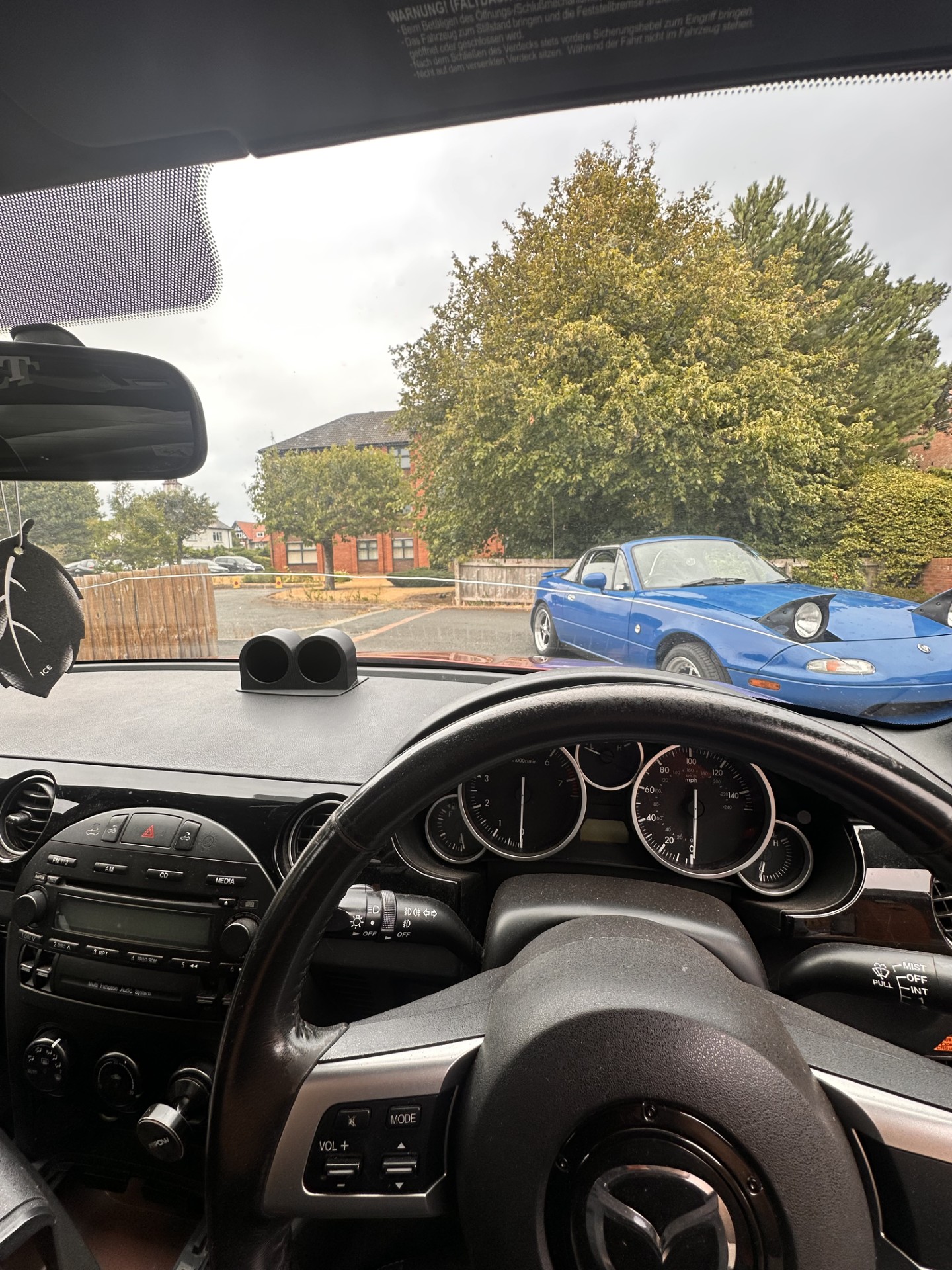

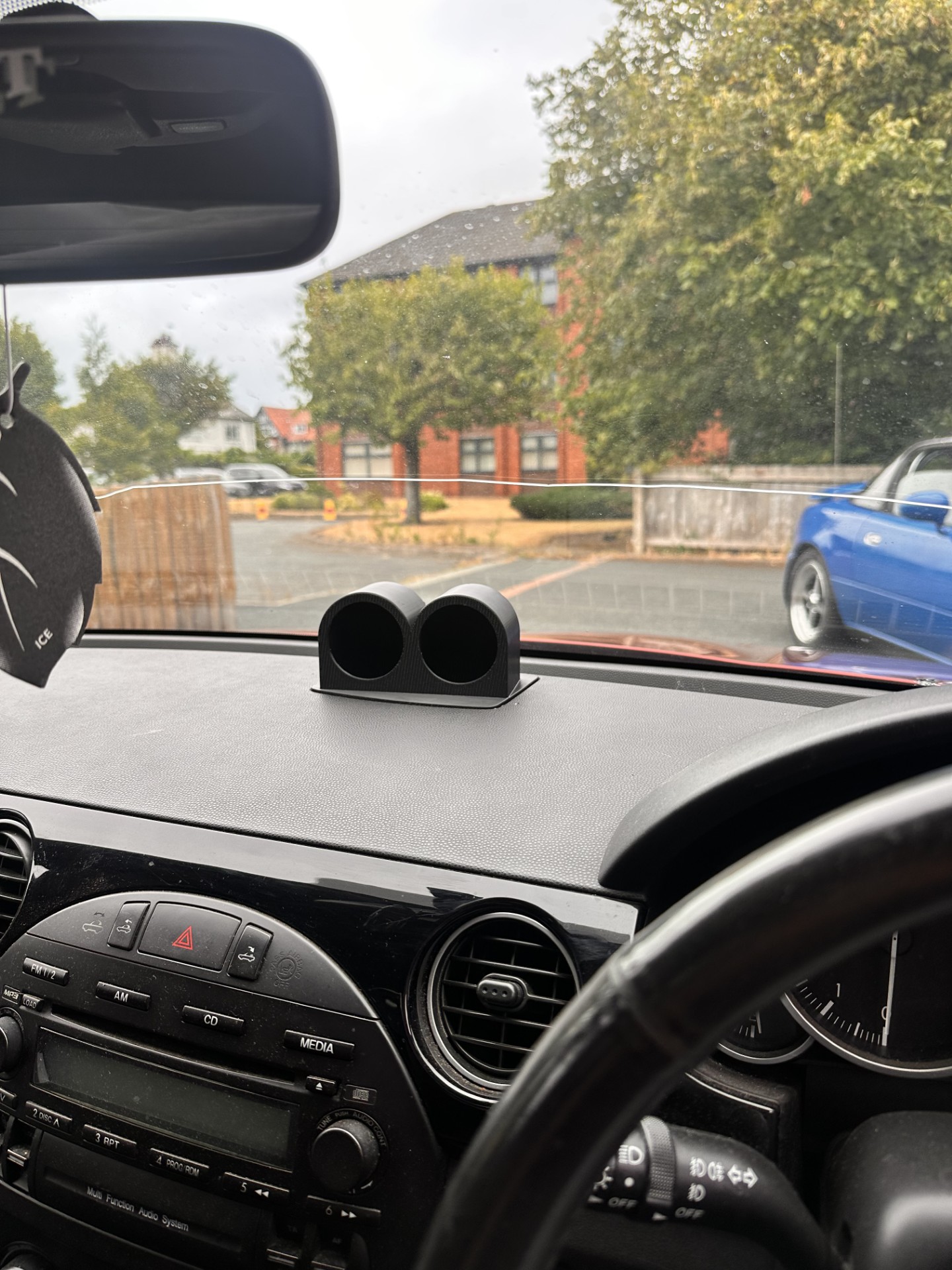

Optimized Perspective: The Driver-Centric Angle Unlike flat or generic “one-size-fits-all” speaker slot covers that force you to strain your neck to read crucial data, our dual pod is precision-angled specifically toward the driver. Once you are buckled into your final driving position with the seat adjusted, both gauge faces align cleanly within your primary field of view, minimizing eye time off the road or track.

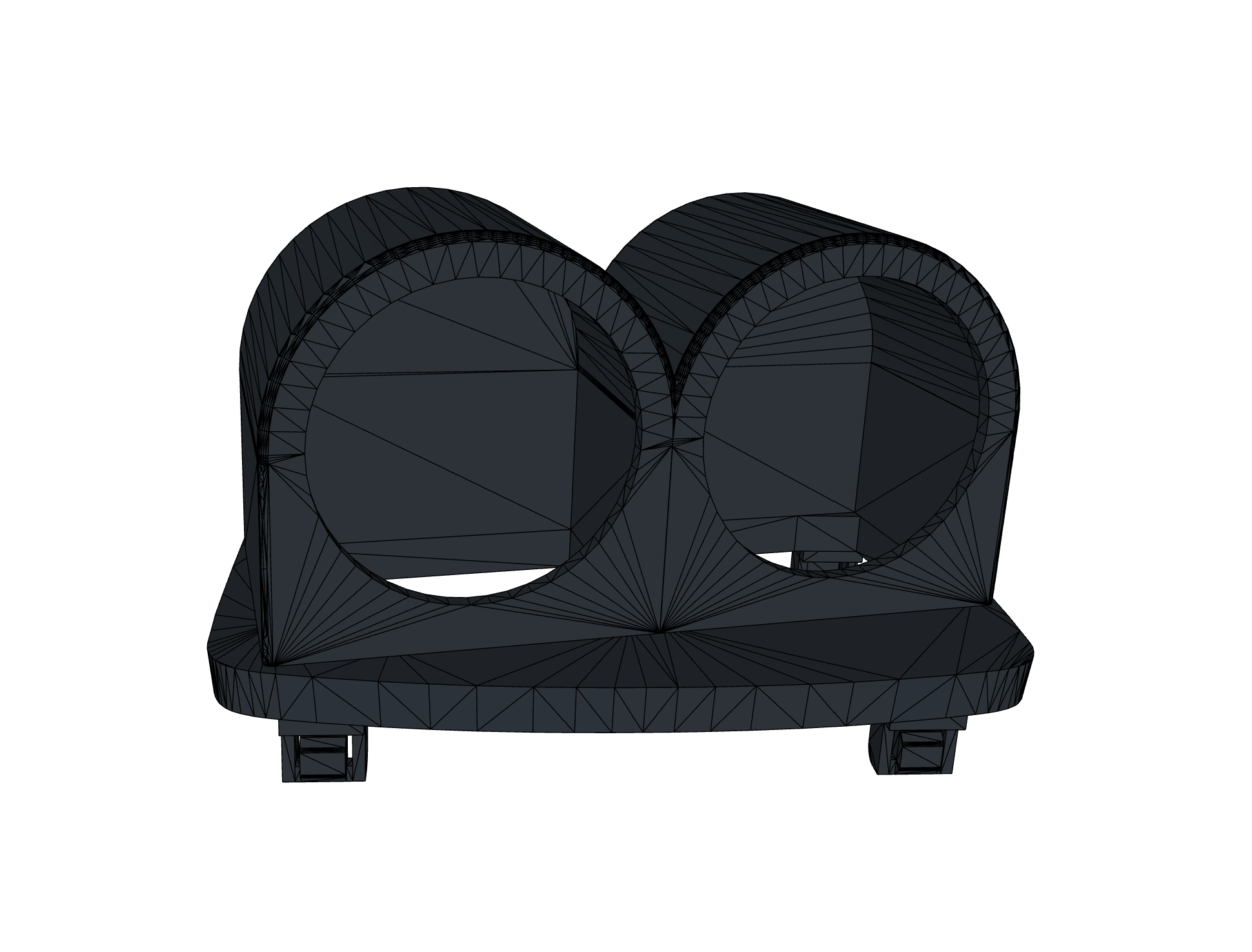

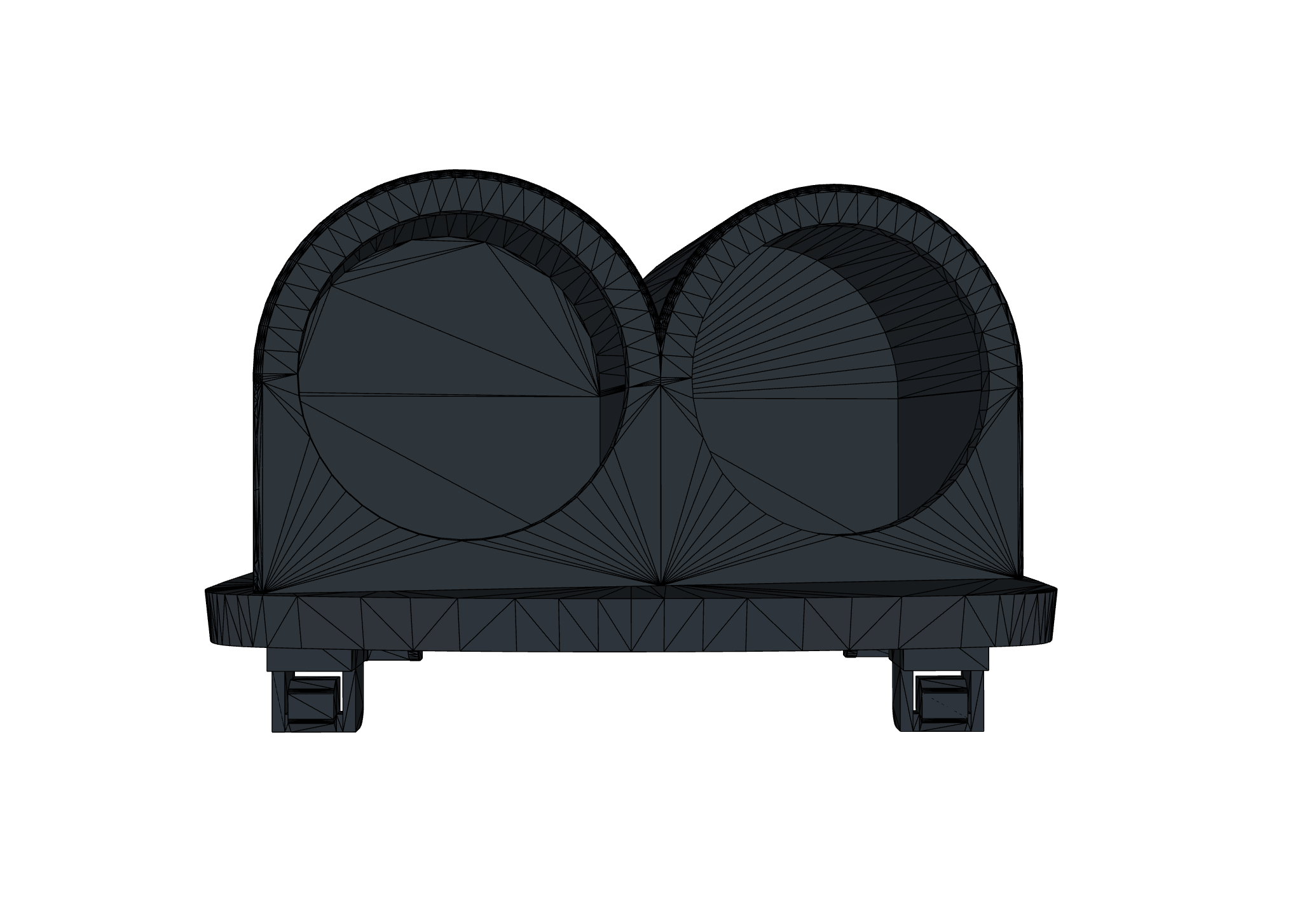

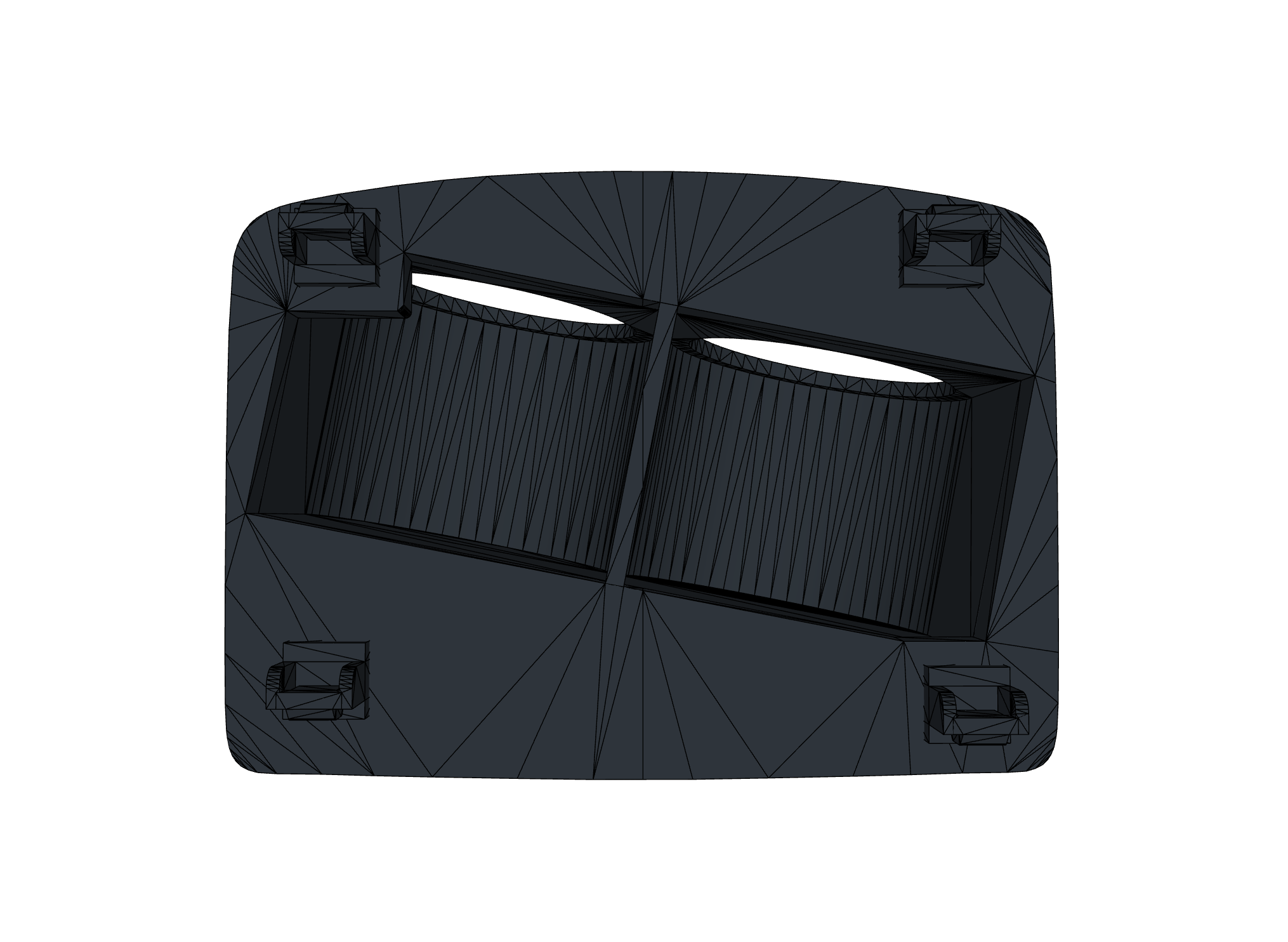

Mechanical Integrity: The “Anti-Teeter” Mounting Design A critical failure point in existing market solutions is unstable mounting, resulting in rattling or a lopsided sit. Our design corrects this with an advanced Four-Clip Anti-Teeter Design. These four robust clips ensure the pod sits completely level and remains securely locked in place under spirited driving conditions. Despite this rock-solid retention, the clip geometry is engineered to be simple enough to release, allowing you to pop the pod out of the dash cleanly when required without damaging your interior trim.

Balanced Depth & U-Clip Clearance Fitting two 52mm gauges into the compact OEM speaker footprint requires tight packaging. To accommodate the dual layout cleanly without protruding excessively into the cabin, the dual variant features a maximum depth of 50mm (measured from the front face of the gauge pod to the inside back wall). While slightly less deep than our single 52mm version, it still comfortably houses a wide variety of standard electronic gauges. Furthermore, we engineered adequate Rear-Access Clearance space to help you install standard aftermarket U-clips, locking your gauges securely to the pod to resist rotation and prevent loose, vibrating displays.

Material Science: High-Grade Thermal Performance Car interiors act like greenhouses, easily reaching temperatures that warp standard PLA or PETG 3D-printed parts.

• Premium ASA Construction: We manufacture this pod exclusively in high-grade Acrylonitrile Styrene Acrylate (ASA).
• Extreme Thermal Resistance: ASA is engineered to withstand immense cabin heat during peak summer months without warping, sagging, or degrading.
• UV Stable: Built to handle direct, continuous sunlight through the windshield without fading or becoming brittle.

Modifier-Friendly Architecture: 3mm Structural Walls For advanced setups, we designed the pod with robust 3mm-thick structural walls. This heavy-duty cross-section provides the mechanical integrity needed if you need to drill custom access holes for wiring or secondary button inputs.

What’s Included: The Definitive Product Specification

High-Performance Mechanics & Materials

• Chassis Core: 1x Precision-Engineered Dual 52mm Gauge Pod (available in specific LHD or RHD mirrored layouts) constructed from high-grade, heat-resistant black ASA.
• Retention Suite: Integrated Four-Clip Anti-Teeter Design.
• Finish Specification: Supplied directly from the print bed. Our refined, multi-iteration prototyping process ensures an incredibly clean, consistent print finish out of the box.

Finish Customization Options

• OEM+ Texture: Run it exactly as-shipped for a clean, raw, engineered motorsport aesthetic.
• Paint & Wrap Ready: The high-quality ASA surface easily accepts standard automotive primers, paints, or vinyl wraps should you wish to colour-match your interior scheme.

Installation Requirements & Tips

• Tools Required: Plastic trim removal tool (to safely pop out the OEM speaker cover), standard hand tools to secure your gauges’ rear brackets.
• Surface Prep Warning: If you decide to paint or wrap the pod, ensure you thoroughly degrease the surface with isopropyl alcohol (IPA) first to remove any residual manufacturing oils and guarantee perfect adhesion.
